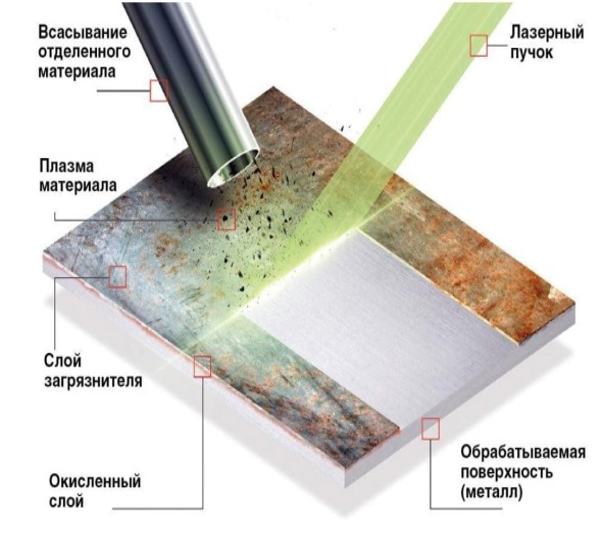

Laser cleaning
One of the promising areas of application of RTС is laser cleaning of treated surfaces.
RTK components that provide laser action were developed jointly by NTO IRE-Polus (IPG PHOTONICS) and ATEKO-TM.
NTO IRE-Polus (IPG PHOTONICS) (laser sources) is a recognized world leader in the laser technology market.
ATECO-TM (galvanometric scanning heads) is the only company in the world that produces laser equipment entirely consists of components of its own production.
Application features:
- No Consumables;
- No surface damage – laser cleaning does not contact the surface and does not damage the surface;
- Working with complex surfaces – cleaning of places inaccessible to traditional cleaning methods;
- Allows to combine mechanical cleaning, degreasing, dust removal and desalination in one technological process – saving time due to a reduction in the number of technological cycles;
- The treated surface has increased adhesion characteristics.
Processing:
- Ferrous and non-ferrous metals;
- Stone, concrete, bricks;
- Flat and curved surfaces;
- Surfaces with large differences in height;
- Hard-to-reach cavities and recesses.
Removable coatings:
- Rust;
- Scale;
- Thin oxide films;
- Paints and varnishes;
- Galvanizing;
- An. ox;
- Polymers;
- Soot, grease;
- Oils, preservatives;
- Organic contaminants.
Costs for processing 1 sq.m.
Description of costs | Sandblasting (siliceous sand) | Sandblast cleaning (copper slag) | Shotblasting (steel shot) | Laser cleaning |
Abrasive material | 80 кг/м2 | 55 кг/м2 | 0,4 кг/м2 | 0 |
Power consumption | 40 КВт/ч | 40 КВт/ч | 40 КВт/ч | 6 КВт/ч |
Productivity:
Radiation delivery | Coating | Paint | Rust | Oxide film | Scale |
Hand gun | Производительность очистки, см2/мин | 3000-3840 | 1500-3000 | 750-1125 | 75-150 |
Automated scanner | 3821-4411 | 3821-4411 | 659-1312 | 120-400 |
Laser surface structuring
Nano- and microstructuring makes it possible to create periodic structures with a certain morphology and topology on surfaces. It is possible to obtain surfaces with unique properties: increased hydrophobicity, high conductivity, altered reflection coefficient, etc.
